We manufacture and export fully automatic oxygen and nitrogen plant for cylinder filling with the latest cryogenic distillation technology for high purity oxygen and nitrogen production. The oxygen cylinder filling plants are optimized for efficiency and reliability with our world – class designing. Our engineers have innovated cryogenic process that increases production efficiency and lower power consumption. It is also equipped with a digital display panel that continuously checks out purity of oxygen and shuts if there is a drop in purity. It can also run remote diagnostic check up of the entire plant to see if the plant is working efficiently.
Our oxygen and nitrogen gas Plant come in various depending upon the requirements our customers. Our small capacity gas oxygen nitrogen plant offers range of 20-60 m3/hr. It is manufactured using leak-proof stainless steel column and skid mounted version for generating high purity medical and industrial oxygen.
Range : 25-50 m3 /hours.|
|
Model |
Capacity in M3 /hours. |
Number Cylinders Per-Day |
Oxygen Produced |
Oxygen in Cylinders |
|---|---|---|---|---|---|
|
Oxygen Small Capacity Oxygen Nitrogen Plant |
|||||
| UBP 30 | 30 | 120 | 99.7% | 150-200BAR | |
| UBP 30 | 30 | 120 | 99.7% | 150-200BAR | |
| UBP 30 | 30 | 120 | 99.7% | 150-200BAR |

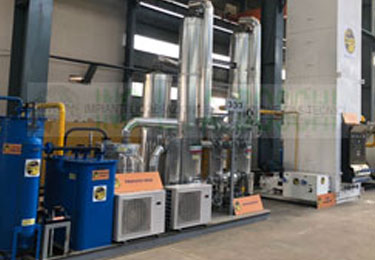

UBP-50 m3 /hour.

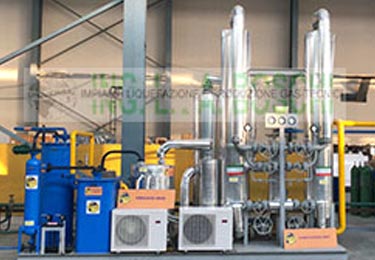

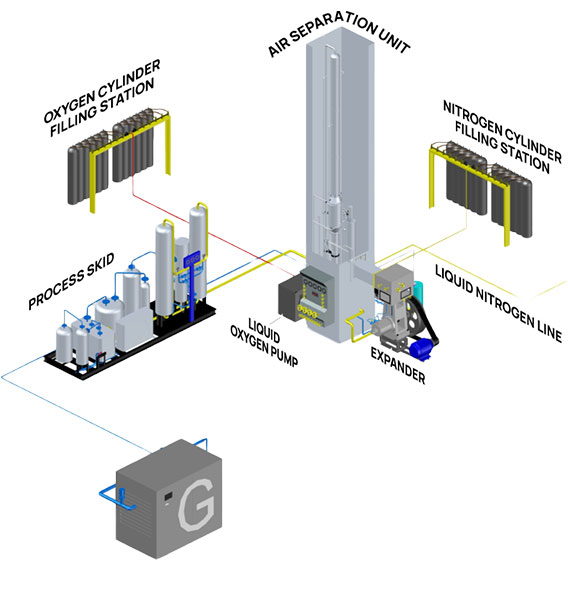

PROCESS SKID

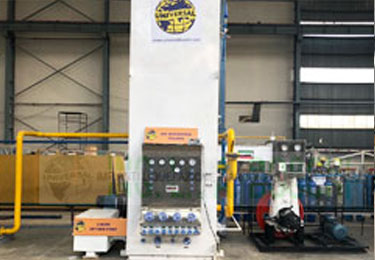

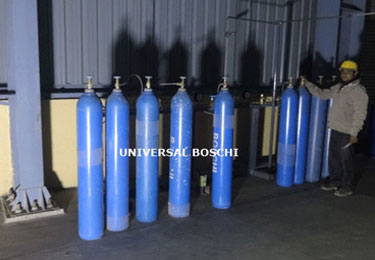

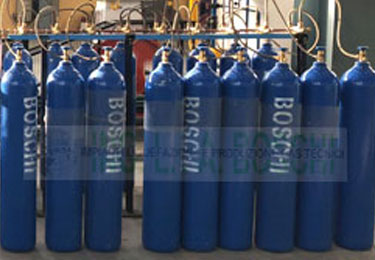

CYLINDER FILLING MANIFOLD
Description : The small capacity oxygen/nitrogen Plant are used for filling high pressure oxygen/nitrogen gas in cylinders/bottles by liquid oxygen pump (oil free & water free) for industrial & medical applications.
Main Features :
Product Modes :
Optional :
Main Equipments :
Our medium capacity gas oxygen nitrogen Plant come with capacity of 80-170 m3/hour. We design and manufacture our Plant in different capacities to meet the requirements of all types of users. The plant is fabricated using the trusted technology of ING. L. & A. Boschi, Italy. The medium capacity plant is known for its hassle-free operation and smooth performance.
Range : 80 - 170 m3 /hours.|
|
Model |
Capacity in M3 /hours. |
Number of Cylinders Per-Day |
Purity of Oxygen Produced |
Pressure of Oxygen in Cylinders |
|---|---|---|---|---|---|
|
Medium Capacity Oxygen Nitrogen Plant |
|||||
| UBP 80 | 80 | 300 | 99.7% | 150-200BAR | |
| UBP 100 | 100 | 400 | 99.7% | 150-200BAR | |
| UBP 130 | 130 | 520 | 99.7% | 150-200BAR | |
| UBP 150 | 150 | 600 | 99.7% | 150-200BAR | |
| UBP 170 | 170 | 700 | 99.7% | 150-200BAR |

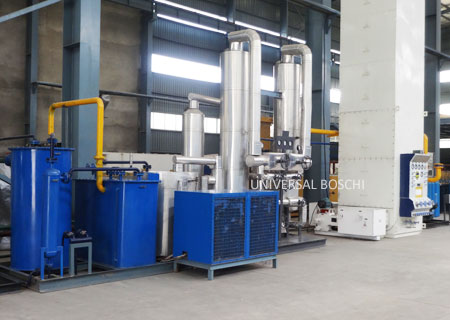

UBP-130 m3 /hour.
COLDBOX WITH EXPANDER

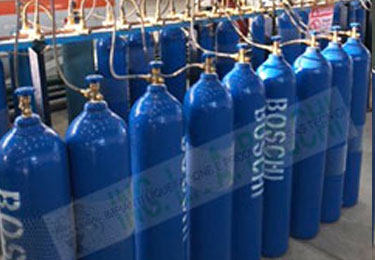

CYLINDER FILLING MANIFOLD
Description : Medium capacity oxygen nitrogen plant is manufactured using stainless steel column for production of high purity oxygen and nitrogen. It is used for filling high pressure oxygen/nitrogen gas in cylinders/bottles via a liquid pump for medical as well as industrial applications.
Main Features :
Product Modes :
Optional :
Main Equipments:
We offer large capacity gas oxygen nitrogen Plant with a capacity of 200-2000 m3/hour. Our Plant are designed and manufactured in various sizes for different requirements of our customers. Our Plant are designed and manufactured in technical collaboration with ING. L. & A. Boschi, Italy. The plant delivers trouble-free performance.
Range : 200 - 1000 m3 /hours.|
Model |
Capacity in M3 /hours. |
Number of Cylinders Per-Day |
Purity of Oxygen Produced |
Pressure of Oxygen in Cylinders |
|---|---|---|---|---|
| UBP 250 | 250 | 1000 | 99.7% | 150-200BAR |
| UBP 300 | 300 | 1200 | 99.7% | 150-200BAR |
| UBP 400 | 400 | 1600 | 99.7% | 150-200BAR |
| UBP 500 | 500 | 2000 | 99.7% | 150-200BAR |
| UBP 600 | 600 | 2400 | 99.7% | 150-200BAR |
| UBP 1000 | 1000 | 4000 | 99.7% | 150-200BAR |

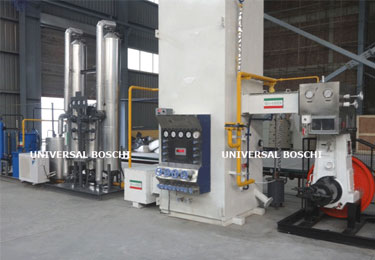

UBP-50 m3 /hour.

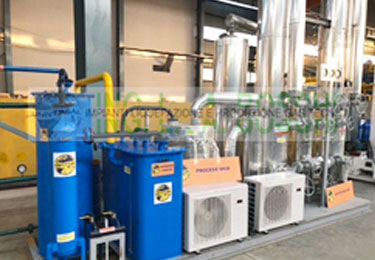

PROCESS SKID
CYLINDER FILLING MANIFOLD
Description : Large capacity oxygen nitrogen plant is manufactures using the stainless steel column for generating high purity oxygen and nitrogen. The plant is then used for filling high pressure oxygen/nitrogen gas in cylinders/bottles through a liquid pump for applications in health care and diverse industries.
Main Features :
Product Modes :
Optional :
Applications of Oxygen Nitrogen Gases :
